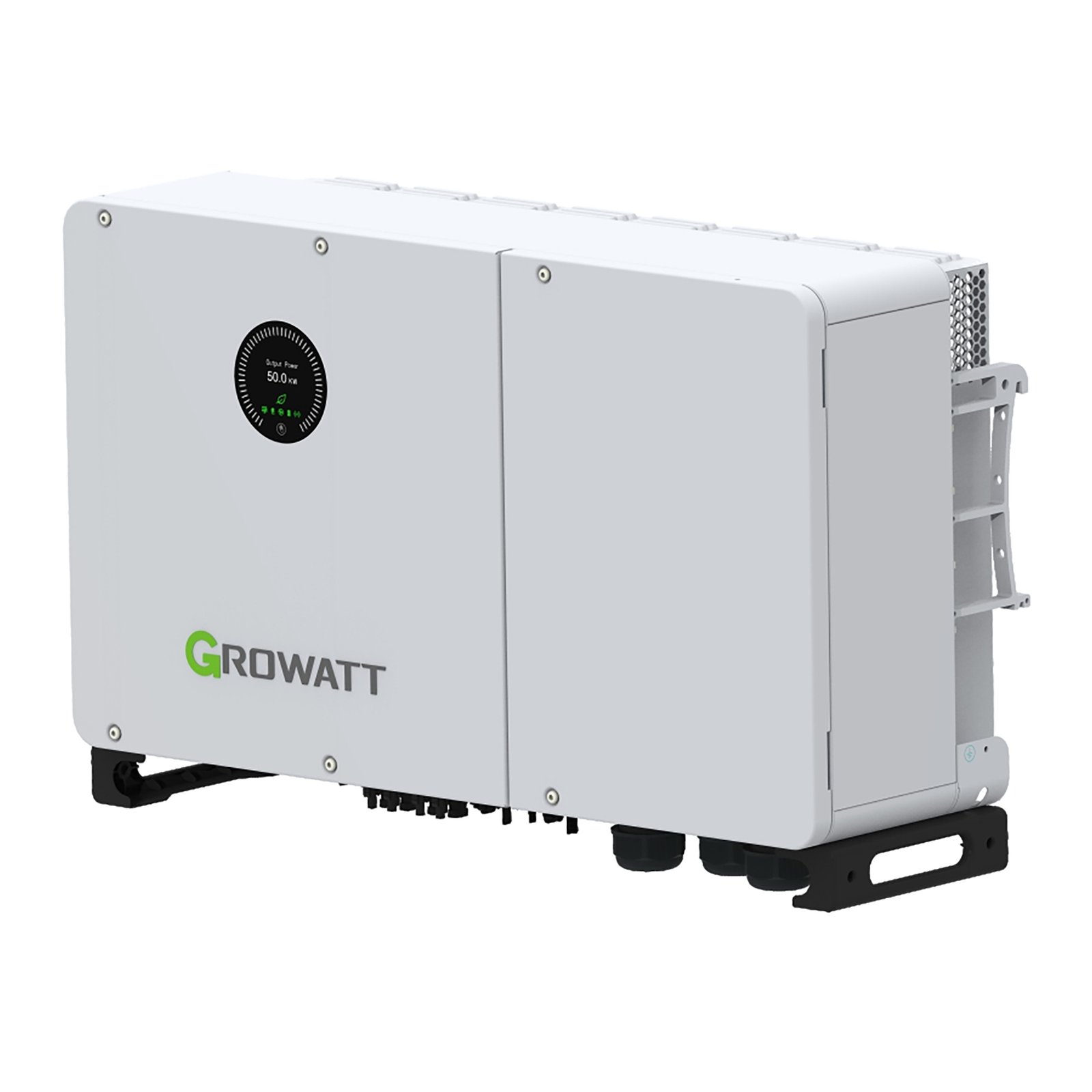

Growatt Hybrid Solar Inverter WIT40K-XHU 40KW Three Phase 4 MPPT Energy Storage Inverter For Commercial Solar Power System

Name: Growatt Hybrid Solar Inverter WIT40K-XHU 40KW Three Phase 4 MPPT Energy Storage Inverter For Commercial Solar Power System - Harvesting new energy
Brand: Growatt
SKU: WIT40K-XHU
Price: 4200.00 USD
Availability: InStock

$4,200.00

Add to wishlist

Compare

SKU: WIT40K-XHU Categories: Hybrid Inverter, Inverter & Controller Tags: Growatt Hybrid Solar Inverter, Hybrid Solar Inverter, Solar Inverter, Three Phase Hybrid Solar Inverter

The Growatt Hybrid Solar Inverter WIT 40K-XHU is a high-performance commercial storage inverter designed for energy storage applications.

Multiple MPPTs and battery input
DC/AC Ratio up to 2.0
Max. efficiency up to 98.2%
String current 32A for high power modules
100% unbalanced output
110% continuous AC overloading
150% off-grid overload capacity with 10s
Support DG input and smart load function
IP66 protection degree
Type II SPD on DC&AC side
Active ARC protection (AFCI)

Technical Specifications

Input Voltage: 1100V
Output Voltage: 380/400V -15%~10%
Output Current: 66.7A
Output Frequency: 50/60 Hz
Dimensions: 585x920x320 mm
Protection: IP66
Display: OLED
Cooling: Smart air cooling
Topology: Transformless
Altitude: 4000m
Warranty: 5 years
Weight: 90kg

Applications

The Growatt Hybrid Solar Inverter WIT 40K-XHU is suitable for various commercial energy storage applications, including:

Maximizing self-consumption of solar energy
Providing backup power during outages
Optimizing energy usage and reducing reliance on the grid

The Growatt Hybrid Solar WIT 40K-XHU is a versatile and efficient commercial storage inverter that offers advanced features and high performance. Its multiple MPPTs, high DC/AC ratio, and support for unbalanced output make it an ideal choice for commercial energy storage applications. With its robust design, high efficiency, and comprehensive protection features, the WIT 40K-XHU ensures reliable and safe operation in various environments.

Model No.	WIT 29.9K-XHU	WIT 30K-XHU	WIT 36K-XHU	WIT 40K-XHU	WIT 50K-XHU
Warranty
Product Warranty (Min)	5 Years	5 Years	5 Years	5 Years	5 Years
Input Data(DC)
Max. DC Power	59.8 kW	60 kW	72 kW	80 kW	100 kW
Max. DC Voltage	1100 V	1100 V	1100 V	1100 V	1100 V
Nominal DC Voltage	620 V	620 V	620 V	620 V	620 V
Min. DC Voltage to Start Feed In	195 V	195 V	195 V	195 V	195 V
Max. DC Current	160 A	160 A	160 A	160 A	160 A
MPP(T) Voltage Range	180~1000 V	180~1000 V	180~1000 V	180~1000 V	180~1000 V
No of MPP Trackers	4	4	4	4	4
DC Inputs	8	8	8	8	8
Output Data (AC)
Nominal AC Power	29.9 kW	30 kW	36 kW	40 kW	50 kW
Nominal AC Voltage	380, 400 V	380, 400 V	380, 400 V	380, 400 V	380, 400 V
Max. AC Current	45.3 A	50 A	60 A	66.7 A	83.3 A
Frequency Range	45-65 Hz	45-65 Hz	45-65 Hz	45-65 Hz	45-65 Hz
Frequency	50, 60 Hz	50, 60 Hz	50, 60 Hz	50, 60 Hz	50, 60 Hz
Distortion (THD)	< 3 %	< 3 %	< 3 %	< 3 %	< 3 %
No of feed-in phases	3	3	3	3	3
Max. Efficiency	98.10%	98.10%	98.10%	98.10%	98.10%
General Data
Dimensions (H/W/D)	585x920x320 mm	585x920x320 mm	585x920x320 mm	585x920x320 mm	585x920x320 mm
Weight	90 kg	90 kg	90 kg	90 kg	90 kg
Noise Level	< 55 dB(A)	< 55 dB(A)	< 55 dB(A)	< 55 dB(A)	< 55 dB(A)
Operating Temperature	-30 ~ +60 ℃
Transformer	Transformerless
Protection Class	IP66
Humidity	0-95 %
Cooling	Fan
Max. Altitude	4000 m
Interface	RS 485, USB, WLAN
Display	LED
Protection Features
Protection Features	Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, Ground Fault Monitoring, Grid Monitoring

Weight	100 kg
Dimensions	1100 × 80 × 50 cm
Brand	Growatt
Battery Type	Lithium-ion
Battery Voltage Range(V)	310-800
Max. Charging Current(A)	50
Max. Discharging Current(A)	50
Number of battery input	3
Start-up Voltage(V)	195
Max PV Input Power(W)	80K
Max PV Input Voltage(V)	1100
Monitor Mode	4G, Bluetooth, GPRS, LAN, WIFI
MPPT Efficiency	>99%
MPPT Voltage Range(V)	180-1000
No. Of MPPT	4/2+2+2+2
Rated AC Input/Output Active Power(W)	40000
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz, 60Hz/55Hz-65Hz
Rated Input/Output Voltage/Range(V)	230/400V
Size（WHD）[mm]	920/585/320

Reviews

There are no reviews yet.

Be the first to review “Growatt Hybrid Solar Inverter WIT40K-XHU 40KW Three Phase 4 MPPT Energy Storage Inverter For Commercial Solar Power System”

Growatt is a leading global provider of distributed energy solutions, specializing in sustainable energy generation, storage, and consumption. The company offers a comprehensive range of products, including solar inverters, energy storage systems, and smart energy management solutions. Key Offerings Solar Inverters: Growatt's lineup includes intelligent string inverters suitable for residential, commercial, and utility-scale solar applications, with capacities ranging from 0.75 kW to 253 kW. Energy Storage Solutions: Growatt provides versatile storage solutions for both new installations and retrofits, including hybrid and AC-coupled systems. Their battery systems, such as the APX series, are designed to maximize self-consumption and enhance grid independence. Electric Vehicle (EV) Chargers: The company offers smart EV chargers with capacities ranging from 3 kW to 40 kW, enabling users to charge their vehicles using solar energy. Smart Energy Management: Growatt's advanced systems leverage Big Data, AI, and IoT technologies for efficient energy management, providing multi-point data monitoring and a smart cloud platform for predicting energy generation and consumption. Recent Innovations At the Intersolar Europe 2024 exhibition, Growatt showcased its latest products, including the NEO 600-1000M-X Microinverter and the NOAH 2000 Battery for balcony solar systems. These innovations reflect the company's commitment to integrating solar and storage solutions seamlessly for residential and commercial applications. Applications Growatt's solutions are designed to cater to various applications, including: Residential Systems: Enhancing energy independence and reducing electricity bills through self-consumption of solar power. Commercial Solutions: Optimizing energy usage for businesses and providing backup power during outages. Utility-Scale Projects: Supporting large-scale solar installations with efficient energy management systems.

Growatt-WIT-299-50K-XHU-Datasheet-EN-202405

Growatt-WIT-299-50K-XHU-Quick-Guide-EN-202406
Growatt-WIT-299-50K-XHU-NRS-097
Growatt-WIT-299-50K-XHU-IEC62116&IEC61727
Growatt-WIT-299-50K-XHU-CE-EMC
Growatt-WIT-299-50K-XHU&WIT-12-30K-XHU-L2-CE-LVD
Growatt-WIT-30-50K-XHU-IEC61683&60068
Growatt-WIT-299-50K-XHU-User-Manual-EN-202407
