Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 175 × 115 × 3 cm |
| Brand | Longi |
| Cables | 4.0 mm |
| Encapsulant Material | POE/EVA |
| J-Box | IP68 |
| Maximum Power | 420, 425, 430, 435, 440 |
| Number Of Solar Cells | 108 |
| Solar Cells | N-type Monocrystalline |
| Module Dimension(mm) | 1722x1134x30 |
| Backsheet | White |
| Front Glass | 3.2mm AR Coated Heat Strengthened Glass |
| Vmp(V) | 30.33 |
| Imp(A) | 10.85 |
| Backside Power | N/A |
| Connector | MC4 |
| Weight[kg] | 20.8 |
Reviews (0)
About Longi
LONGi Green Energy Technology Co., Ltd., commonly known as LONGi Solar, is the world's largest manufacturer of solar photovoltaic (PV) products. Founded in 2000, the company specializes in the production of monocrystalline silicon wafers, solar cells, and modules, and is recognized for its commitment to technological innovation and sustainability.
Key Highlights
Market Leadership:
LONGi is the largest solar PV producer globally, with a significant share of the market, achieving module shipments of 31.34 GW in the first half of 2024 alone.
The company has maintained a AAA rating in PV Tech's ModuleTech Bankability rankings for 18 consecutive times, reflecting its strong financial health and product reliability.
Technological Innovation:
LONGi focuses on enhancing solar cell conversion efficiency through advanced technologies such as HPBC (High-Performance Bifacial Cell) technology, which improves energy yield and reduces costs.
The Hi-MO series of bifacial modules, including the latest Hi-MO 9, are designed for high performance in diverse environmental conditions, making them suitable for various applications.
Sustainability Commitment:
LONGi is committed to sustainability and has pledged to achieve 100% renewable electricity sourcing by 2028-2030. The company has also reported a nearly 40% reduction in operational emissions per revenue unit in 2022.
During the COP28 summit, LONGi announced partnerships aimed at promoting energy equity and sustainable development, showcasing its role in global climate action.
Global Presence:
LONGi operates manufacturing facilities and sales offices in over 150 countries, including significant production capabilities in China, Vietnam, and Malaysia. This extensive network allows for efficient distribution and local market support.
The company has made substantial inroads into markets such as Europe, the Middle East, and Asia, adapting its strategies to meet regional demands.
Research and Development:
LONGi invests heavily in R&D, collaborating with leading universities and research institutions to drive innovation in solar technology.
The company's focus on collaborative innovation has led to breakthroughs in cell technology and cost reduction across the solar industry.
Product Offerings
Solar Modules: LONGi's solar modules, especially the Hi-MO series, are known for their high efficiency and durability. They are suitable for residential, commercial, and utility-scale applications.
Bifacial Technology: LONGi's bifacial modules can capture sunlight from both sides, increasing energy generation and making them ideal for installations in various environments.
Green Hydrogen Solutions: In addition to solar products, LONGi has recently embraced green hydrogen technologies, supporting global zero-carbon development initiatives.
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Description

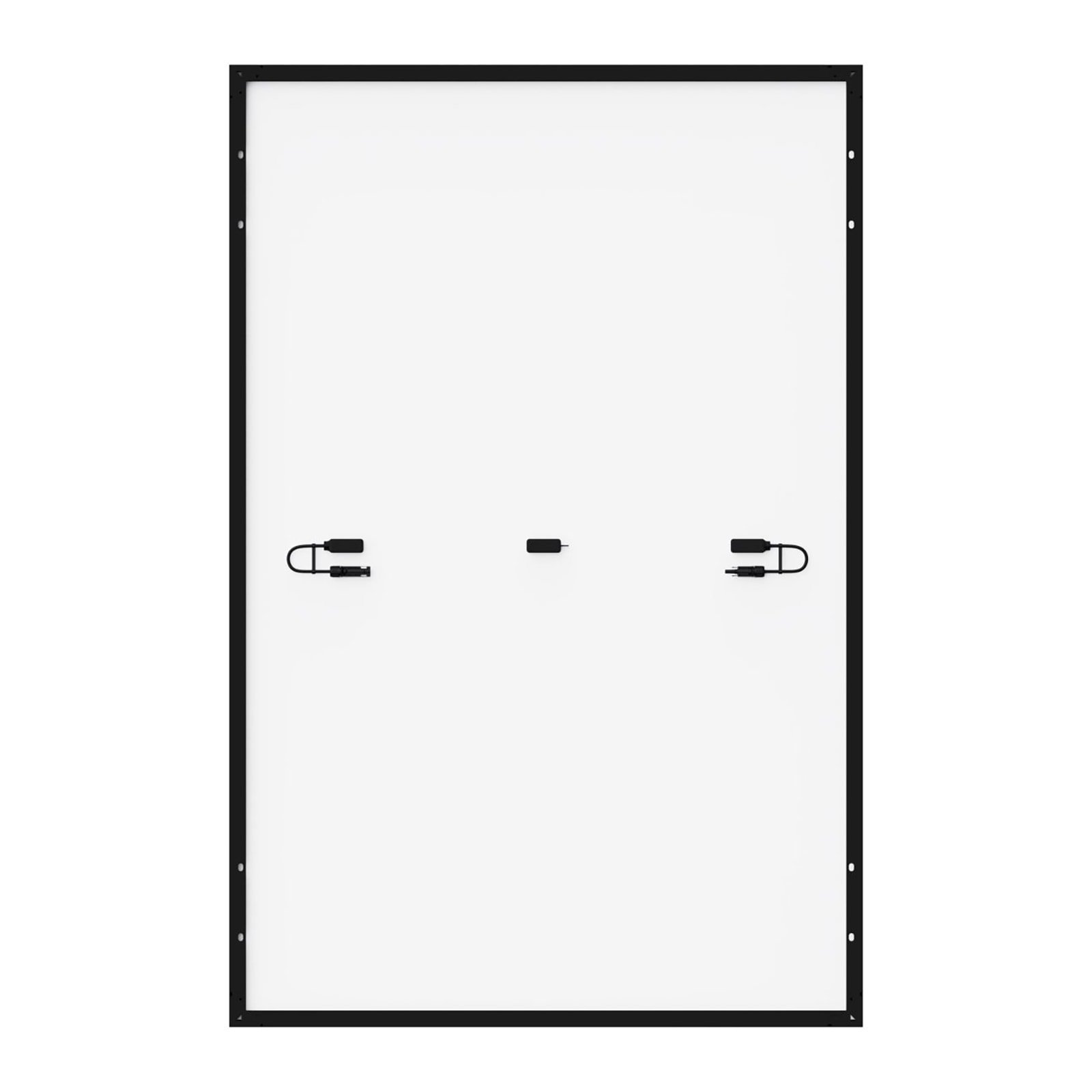

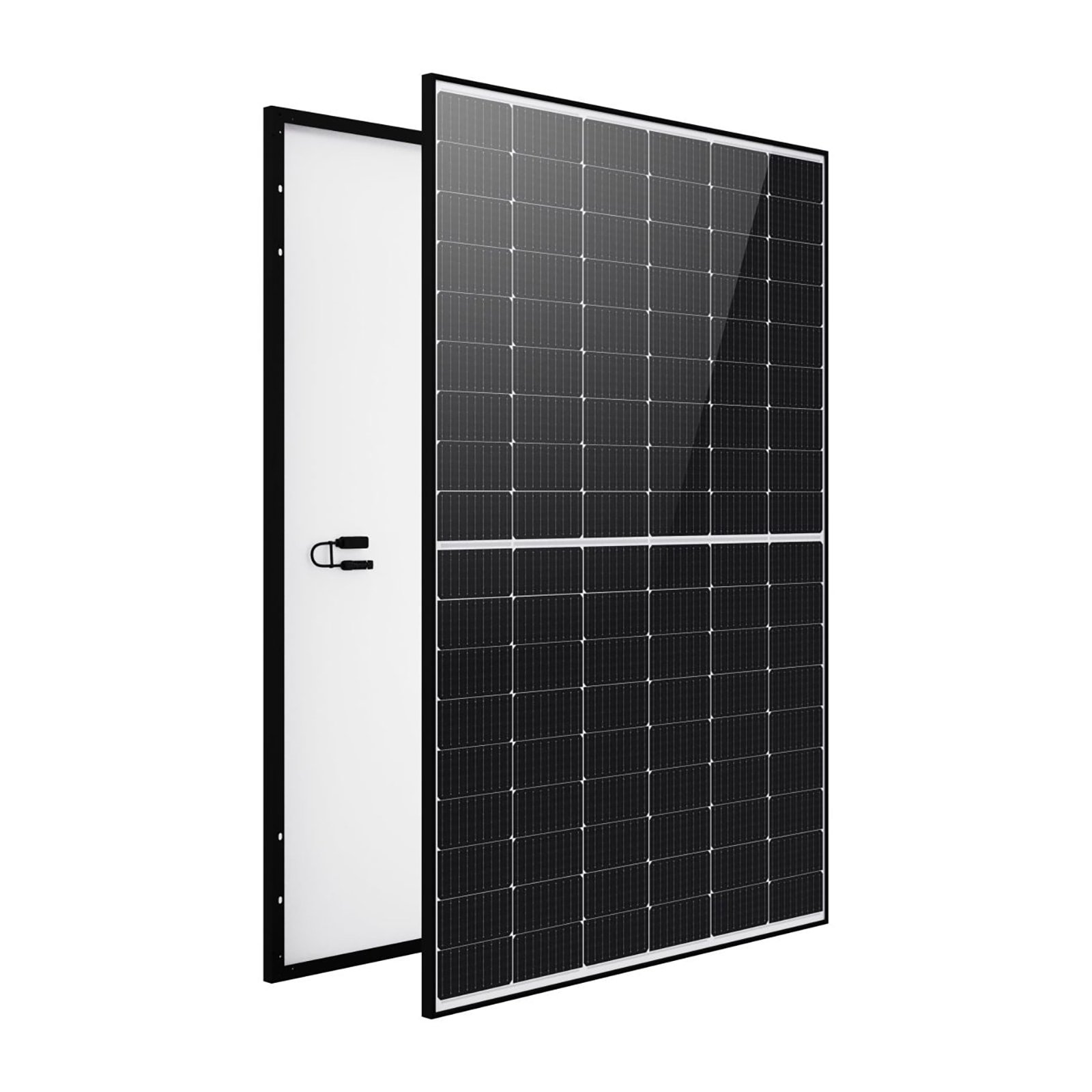

Longi Solar Panels Hi-MO X6 Explorer LR5-54HTH 420-440M HPBC 108 Cells Monofacial Monocrystalline PV module For On-Grid Solar System
The Longi Solar Panels Hi-MO X6 Explorer LR5-54HTH (420-440M) is a high-performance dual-glass monocrystalline solar panel designed for on-grid solar systems.
Key Features
- Power Output: The panel offers a power output range of 420 to 440 watts peak (Wp), making it suitable for various residential and commercial applications.
- Cell Technology: Utilizes HPBC (Hybrid Passivated Back Contact) technology, which enhances efficiency and minimizes energy losses due to shading. This technology allows for superior light absorption and improved overall performance.
- Efficiency: The Hi-MO X6 Explorer achieves high efficiency ratings of up to 22.5%, ensuring optimal energy production from sunlight.
- Dual-Glass Design: The panel features a dual-glass construction, which enhances durability and provides better protection against environmental factors such as moisture and dust. This design also improves the panel’s resistance to mechanical stress.
- Temperature Coefficient: The temperature coefficient is approximately -0.29%/°C, indicating that the panel maintains good performance even in high-temperature conditions.
- Dimensions: The panels typically measure around 1722 mm x 1134 mm x 30 mm.
- Weight: Each panel weighs approximately 20.8 kg, making it manageable for installation.
- Warranty: Longi typically offers a 15-year product warranty and a 30-year linear power output warranty, ensuring long-term reliability and performance.
Advantages
- High Energy Yield: The combination of high power output and efficiency ensures maximum energy generation, making it ideal for various applications.
- Enhanced Low-Light Performance: The HPBC technology allows for improved performance in low-light conditions, maximizing energy yield throughout the day.
- Robust Durability: The dual-glass design provides enhanced durability, protecting the cells from environmental damage and improving longevity.
- Aesthetic Appeal: The sleek design and black frame option provide a modern look, making it suitable for residential installations where aesthetics are important.
- Versatility: Suitable for a variety of applications, including residential rooftops, commercial buildings, and utility-scale installations.
Applications
The Longi Solar Panels Hi-MO X6 Explorer LR5-54HTH is ideal for on-grid solar systems, particularly in residential and commercial settings where maximizing energy output and efficiency is critical.
Its advanced features and robust construction make it a reliable solution for energy generation.
| Model No. | LR5-54HTH 415M | LR5-54HTH 420M | LR5-54HTH 430M |
| Warranty | |||
| Product Warranty | 15 Years | ||
| Power Warranty | 25 Years of 88.9% Output Power | ||
| Electrical Data at STC | |||
| Maximum Power (Pmax) | 415 Wp | 420 Wp | 430 Wp |
| Voltage at Maximum Power (Vmpp) | 32.24 V | 32.44 V | 32.84 V |
| Current at Maximum Power (Impp) | 12.88 A | 12.95 A | 13.1 A |
| Open Circuit Voltage (Voc) | 38.53 V | 38.73 V | 39.13 V |
| Short Circuit Current (Isc) | 13.92 A | 14 A | 14.15 A |
| Panel Efficiency | 21.30% | 21.50% | 22% |
| Power Tolerance (Positive) | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||
| Electrical Data at NOCT | |||
| Maximum Power (Pmax) | 310 Wp | 314 Wp | 321 Wp |
| Voltage at Maximum Power (Vmpp) | 29.42 V | 29.6 V | 29.97 V |
| Current at Maximum Power (Impp) | 10.54 A | 10.6 A | 10.72 A |
| Open Circuit Voltage (Voc) | 36.18 V | 36.36 V | 36.74 V |
| Short Circuit Current (Isc) | 11.24 A | 11.31 A | 11.43 A |
| Temperature | 45±2 °C | ||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||
| Thermal Ratings | |||
| Operating Temperature Range | -40~85 °C | ||
| Temperature Coefficient of Pmax | -0.29 %/°C | ||
| Temperature Coefficient of Voc | -0.23 %/°C | ||
| Temperature Coefficient of Isc | 0.05 %/°C | ||
| Maximum Ratings | |||
| Maximum System Voltage | 1500 V | ||
| Series Fuse Rating | 25 A | ||
| Material Data | |||
| Panel Dimension (H/W/D) | 1722x1134x30 mm | ||
| Weight | 20.8 kg | ||
| Cell Number | 108 | ||
| Glass Type | Tempered | ||
| Glass Thickness | 3.2 mm | ||

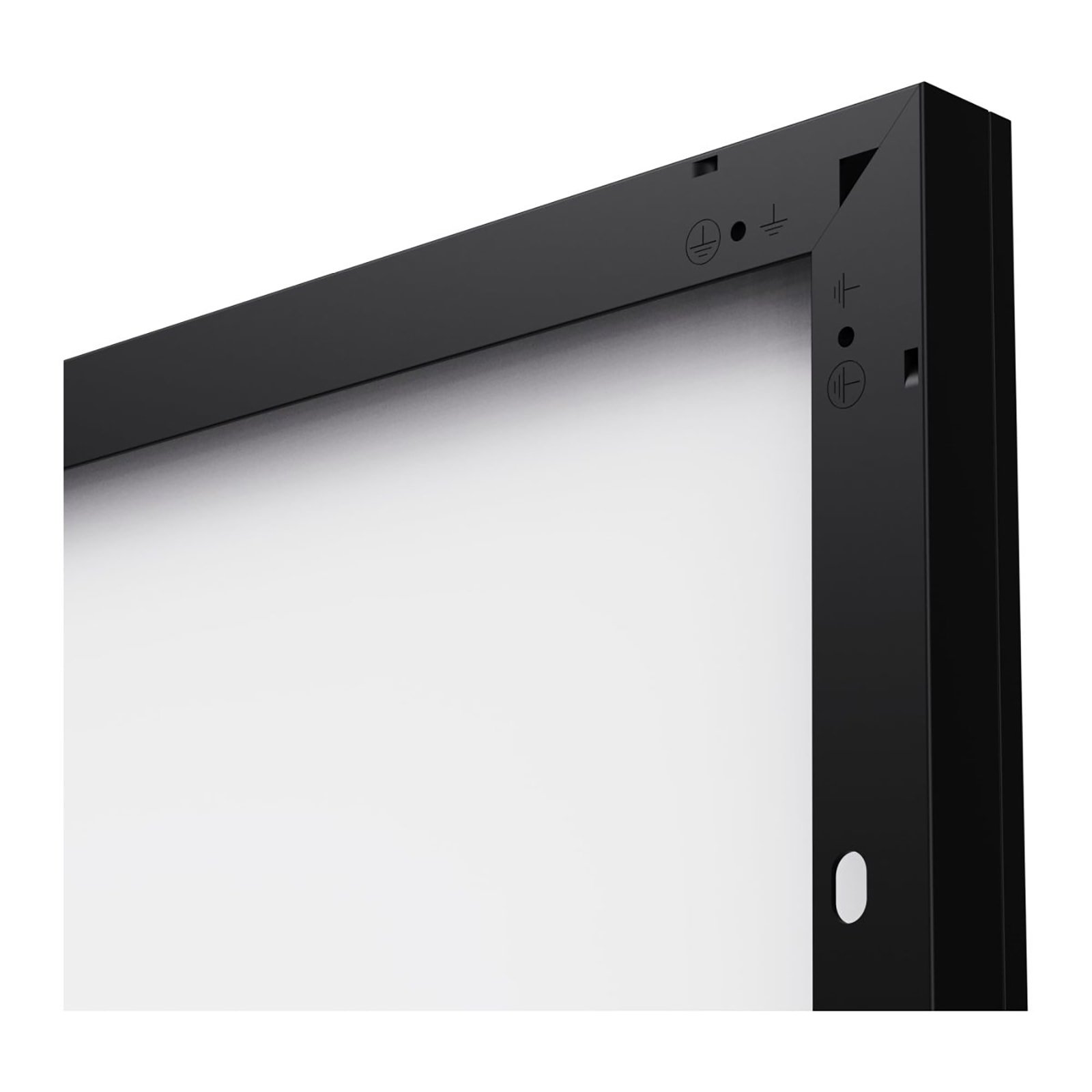

| Frame Type | Anodized Aluminium | ||
| Junction Box Diodes | 3 | ||
| Junction Box Protection Class | IP 68 | ||
| Cable Crossection | 4 mm2 | ||
| Cable Length | 1200 mm | ||
